Pvc Kitchen Cabinet Cnc Making Machine 1530 Cnc Router Multi Head With Vacuum Pump
price

$5,220.00 - $6,880.00

MSW1530
1 set
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Quantity
  • Condition:New
  • Range of Spindle Speed(r.p.m):1 - 18000 rpm
  • Positioning Accuracy (mm):0.02 mm
  • Number of Axes:3
  • No. of Spindles:four
  • Working Table Size(mm):1500×3000
  • Machine Type:CNC Router
  • Travel (X Axis)(mm):1500 mm
  • Travel (Y Axis)(mm):3000 mm
  • Repeatability (X/Y/Z) (mm):0.02 mm
  • Spindle Motor Power(kW):6kw
  • CNC or Not:CNC
  • Place of Origin:Shandong, China
  • Brand Name:MS
  • Voltage:220v/380v
  • Dimension(L*W*H):3000*2150*1800mm
  • Power (kW):3
  • Weight (KG):1000
  • Control System Brand:NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
  • Warranty:3 years
  • Key Selling Points:High Rigidity
  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, Driver, System, Spindle
  • Product name:Cnc Router Machine
  • Application:Wood Working
  • Transmission:Taiwan TBI Ball Screw
  • After-sales Service Provided:Video technical support
  • Spindle:Air Cooling Spindle
  • Control system:Taiwan LNC Control System
  • Software:Ucancam / ArtCam/TYPE3
  • Guide rail:Taiwan Hiwin Square Guide Rail
  • Function:Cutting Engraving Non-metal Materials
  • Color:Clients Requirment
Technical Parameters
1325 Four Processes Wood Cutting Machine
Machine Type
MSW 1325 Four Processes CNC Router
Operating Voltage
AC380V 50HZ 3HP Three-phase Four-wire
Work Plan
X1250*Y2480*Z200mm
Maximum Empty Travel Speed
XY50000mm/min Z20000mm/min
Working Speed
15000-30000mm/min
Table Structure Size
Vacuum Adsorption Table 1260*2480 6 Partitions 24 Holes
Bed Structure
Heavy-duty Double-layer Unloading Trapezoidal Bed
Transmission
Rail 25 Square Rail
Rack High Precision 1.5M Helical Gear
Reducer Japan's New Treasure
Screw Taiwan TBI
Frequency Converter
Shenzhen TETRAN 7.5KW
Spindle Power
JST 6KW*4
Spindle Speed
0-18000rmp
Driver and Motor
LEADSHINE Servo Motor
Run Command
G Code
Control System
Taiwan LNC MW2200 System
Total Weight
1.2T
Plate Fixing
7.5kw Water Circulation Vacuum Pump
Dust Removal
5.5kw High Power Vacuum Cleaner
Detailed Images
Product Description
(1) Using international technology vacuum adsorption table, equipped with a strong adsorption vacuum pump, six partition design, can be strong adsorption of different areas of the material, greatly improve the work efficiency.
(2) The XY axis are rack rotation, fast speed, high efficiency, empty line speed up to 60m/min. Servo motor makes machine stable running with low noise, high speed and high accuracy.
(3) High- speed drive stepper motor and driver. The Y-axis is driven by double motors, with high precisi-on rack drive, and with the vigorous cutting of the spindle to make carving faster.
(4) Adopt imported linear and square guide rail, big bearing force, smooth operation, high precision, long life, high precision imported ball screw, accurate cutting.
(5) Gantry type movement, strengthen the table, can be arbitrary processing of the material on the table, strong and durable.
Application
Four processes CNC Wood Router for MDF cutting wooden furniture cabinet door making♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet desig-n, relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
After sales service
We have professional pre-sales and after sales service Mingshi CNC team
1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.

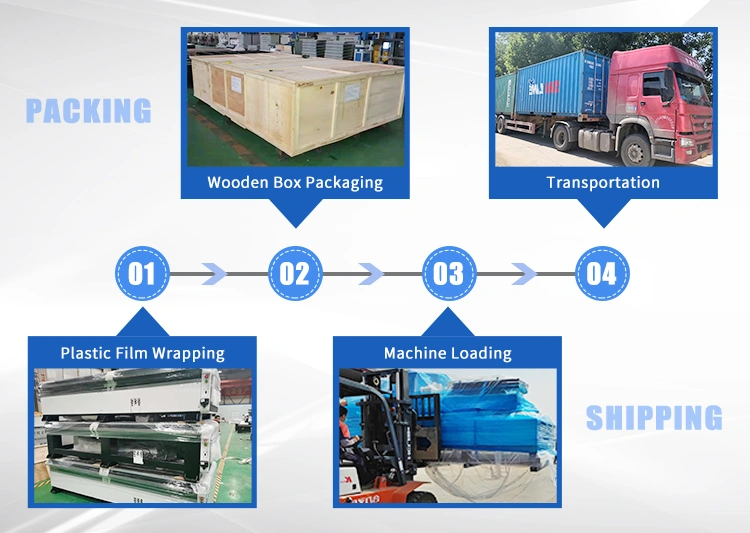

Shipping and Packing
Packaging Details1. Outside package: Standard export plywood case for CNC Router for advertising2. Inner package: Stretch film and plastic film for humidity.PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
FAQ
Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
