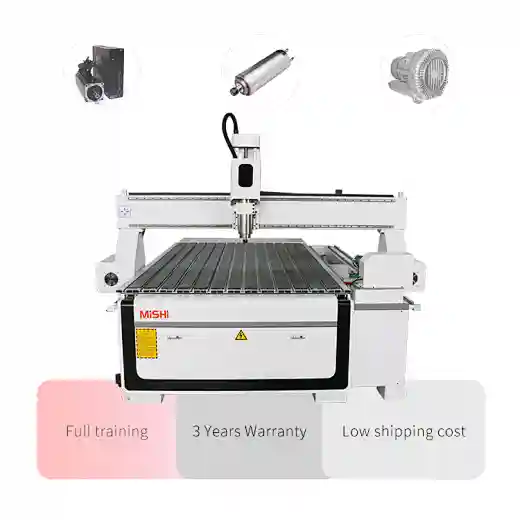

With Good After Sale Service Multi-process 4axis Wood Rotary Spindle CNC Router 3D Cylinder Price 1300*2500mm
MSW 4 axis 1325
Minimum order quantity:
1 set
Country of Origin:
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Quantity
$3580.00 - $4250.00
/ set
- Condition:New
- Range of Spindle Speed(r.p.m):1 - 24000 rpm
- Positioning Accuracy (mm):0.02 mm
- Number of Axes:4
- No. of Spindles:Single
- Working Table Size(mm):1300×2500
- Machine Type:CNC Router
- Travel (X Axis)(mm):1300 mm
- Travel (Y Axis)(mm):2500 mm
- Repeatability (X/Y/Z) (mm):0.02 mm
- Spindle Motor Power(kW):3.2
- CNC or Not:CNC
- Place of Origin:Shandong, China
- Brand Name:MingShi
- Voltage:220V/380V
- Dimension(L*W*H):3000*2150*1800mm
- Power (kW):6
- Weight (KG):1000
- Control System Brand:NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
- Warranty:3 years
- Key Selling Points:Multifunctional
- Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor, Spindle, System, Driver
- Product name:Cnc Router Machine
- Application:Wood Working
- Transmission:Taiwan TBI Ball Screw
- Spindle:Water Cooling Spindle
- Working area:1300x2500mm
- Working table:Aluminum T Slot Working Table
- Machine name:CNC Router Metal Mould Machine
- Model:1325 Router Machine
- Control system:DSP
- After-sales Service Provided:Video technical support
Technical Parameters
1325 4 Axis 3D CNC Router With Rotary Axis | ||
Model | 1325 4 Axis 3D CNC Router With Rotary Axis | |
Working Area | 1300*2500*350mm | |
Rotary size | Diameter:30cm.length:200cm | |

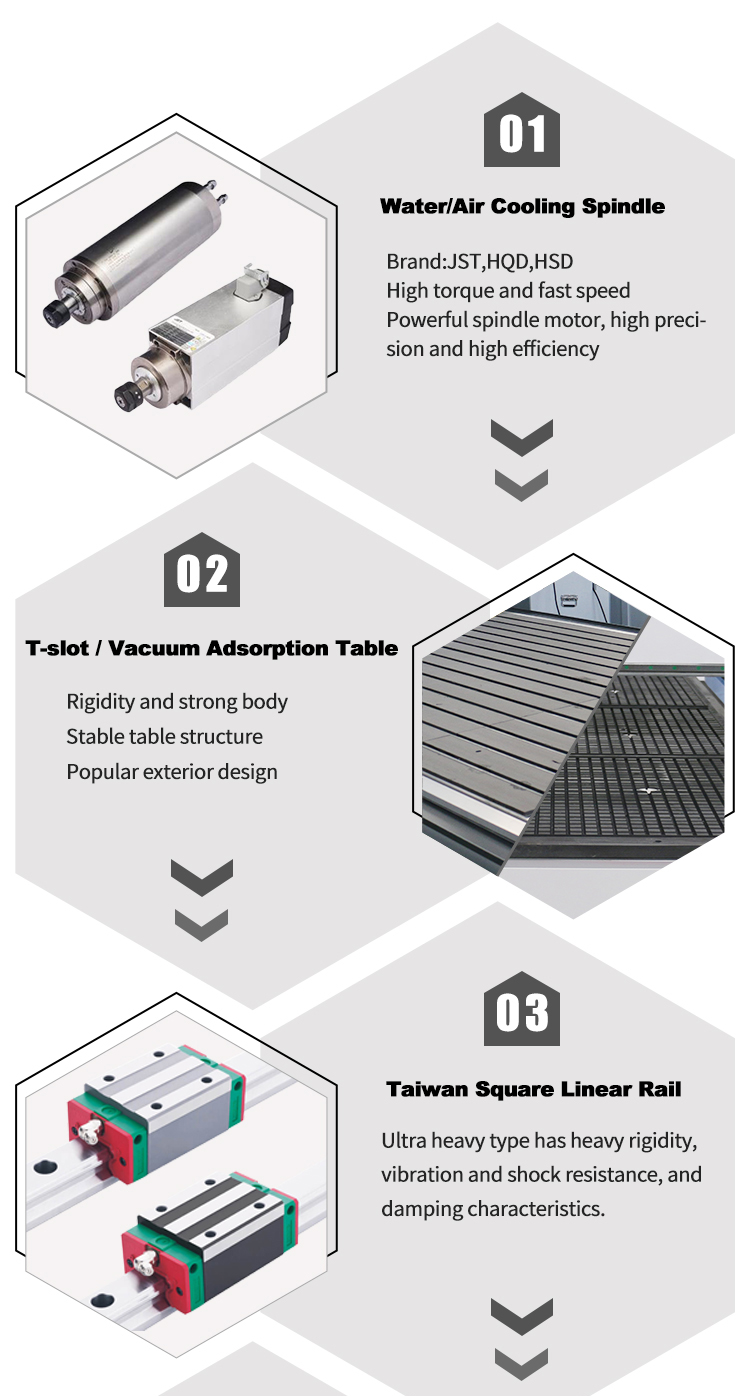

Spindle | 3.2kw, 24000 rpm, water cooling | |
Table | T slot Table or vacuum suction | |
Clamps | 6 pics | |

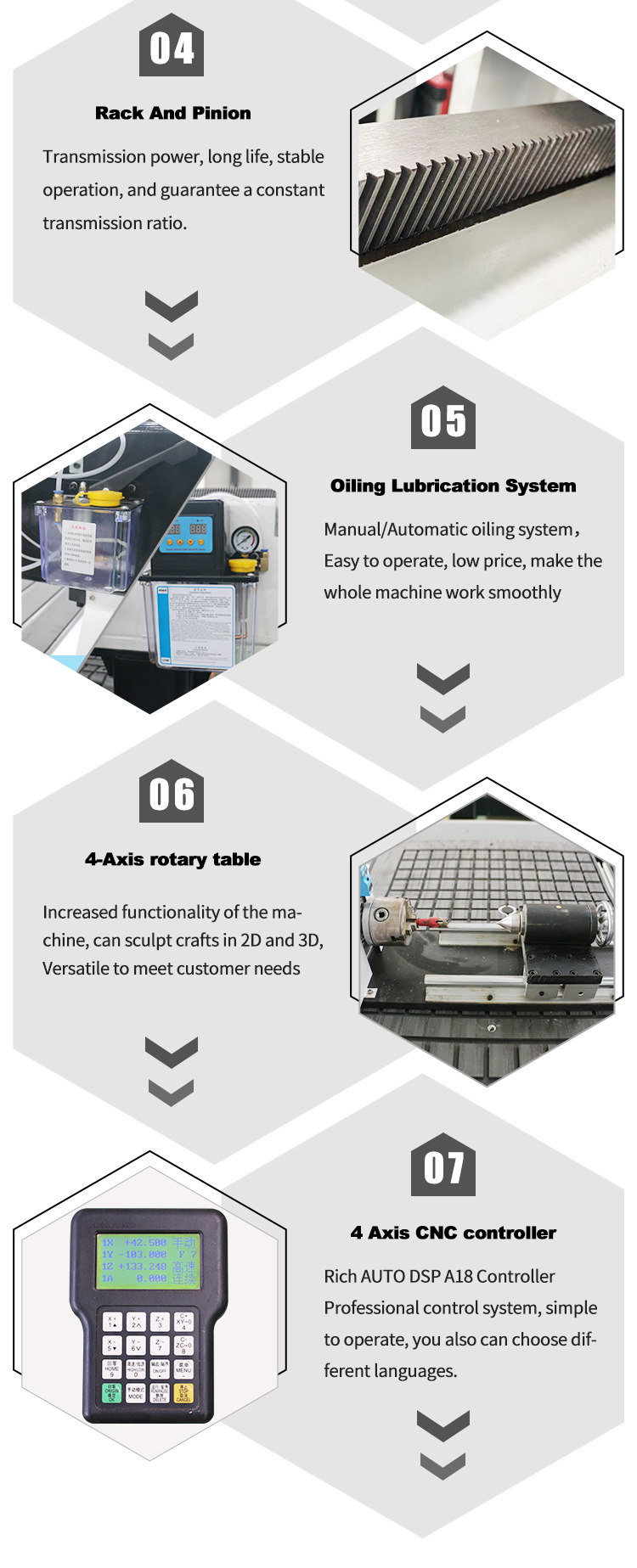

Transmission | Germany Rack and pinion for x.y, ball screw for z | |
Guideway | Taiwan PMI 20mm linear guideway | |
Resolution | 0.01 mm | |
Speed | 25 m/min | |
Inverter | Fuling brand from Shenzhen | |
Driver | China step &Leadshine motor | |
Code | G Code, HPGL Code | |
Working delicacy | 0.03mm | |
Repositioning accuracy | 0.005mm | |
Power Supply | 380V/3P .50Hz | |
Controlling System | 4axis DSP A18s | |
Lubrication | Manual lubrication | |
Software | UcanCAM or Type3 | |
Packing | Wooden Box | |
Packing size | 3.2*1.9*2.22m | |
Net Weight | 1000 kg | |
Gross Weight | 1200 kg | |
Accessories | 1.Contorl unit 2.Dust cover 3.3 KW double bags Dust collector&tube 4.Cutting tool 10 pic 5.Manual 6.One pice limit for spare | |
Detailed Images
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time. you haven't found the machine you need, don't hesitate to contact us too. We will do our best to give you the best suggestion. We can also supply products related to our machines
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time. you haven't found the machine you need, don't hesitate to contact us too. We will do our best to give you the best suggestion. We can also supply products related to our machines
Product Description

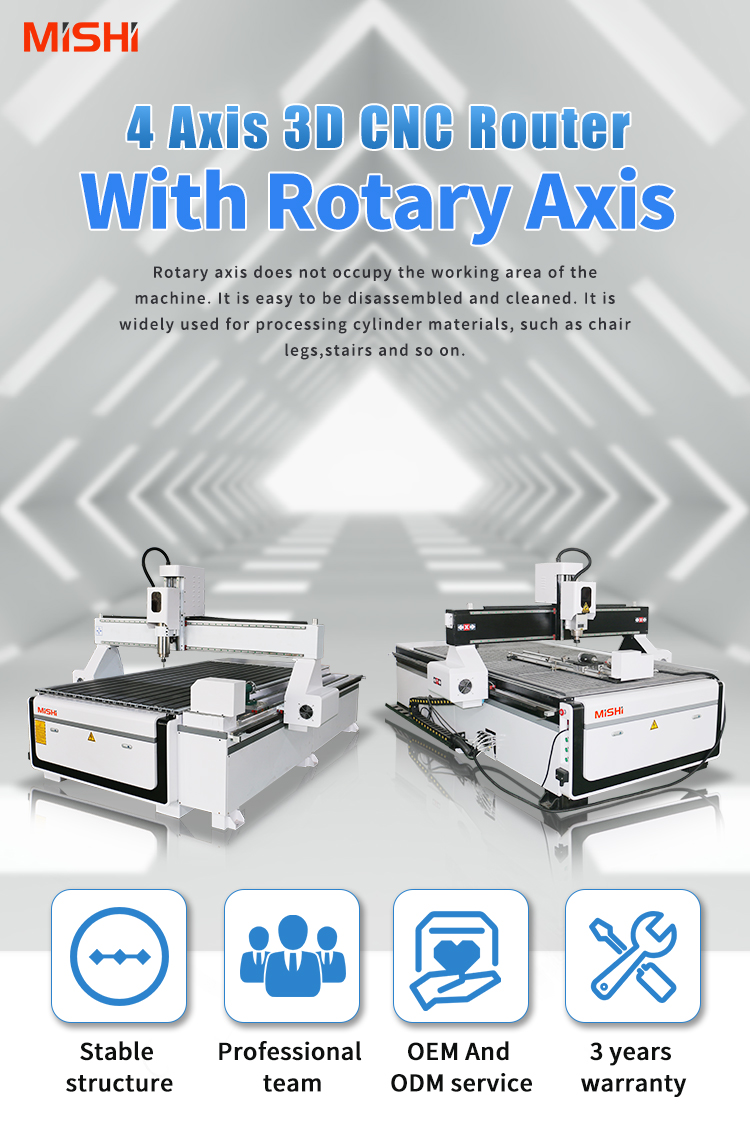

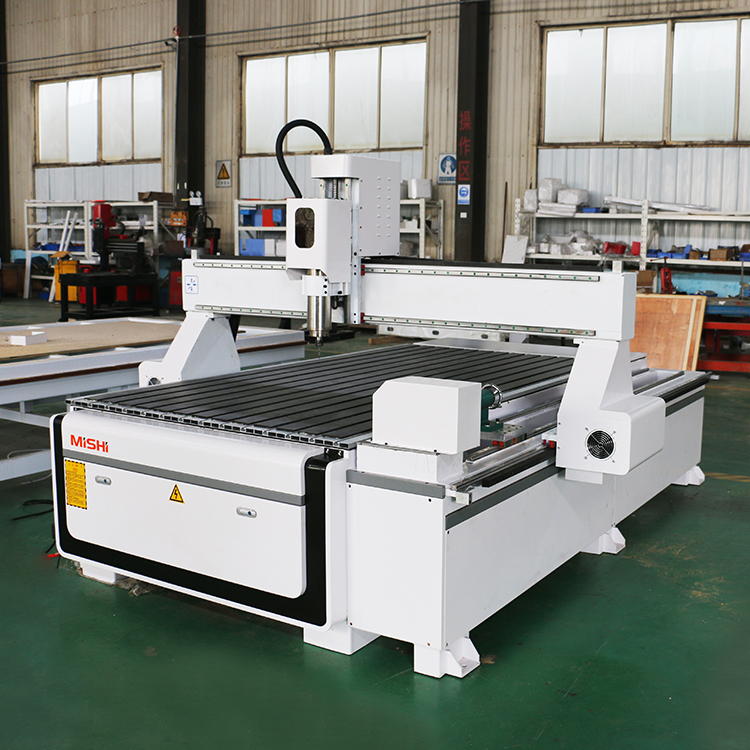

1325 3D Wood CNC Router With Rotary Axis
Advantage
Advantage
1. The machine uses a four-axis controller, not only able to cut and engrave flat wood, MDF, chipboard, plywood, etc, but also can engrave 3D on round columns， like furniture legs, statues, figures, and so on.
2. Breakpoint recovery function in case of power off or other accidents.

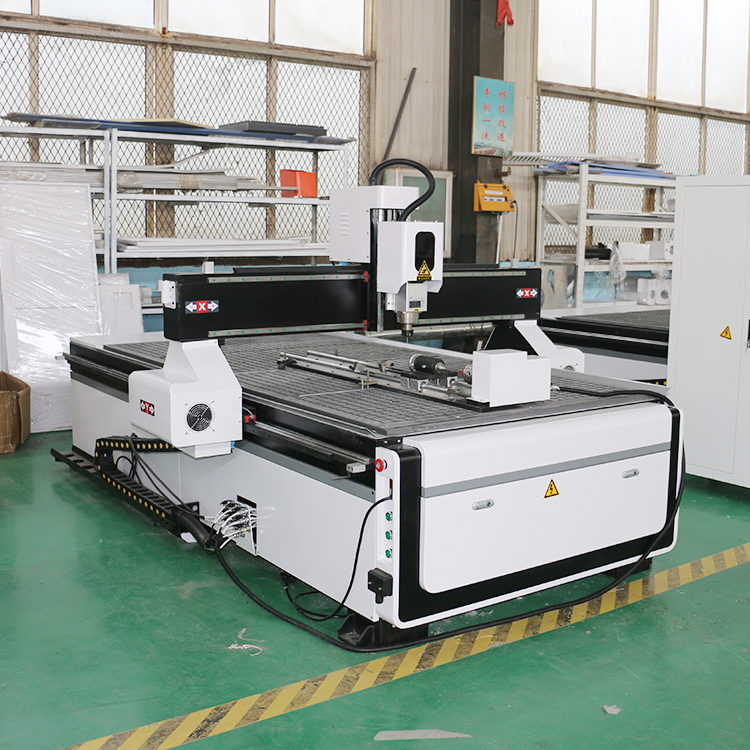

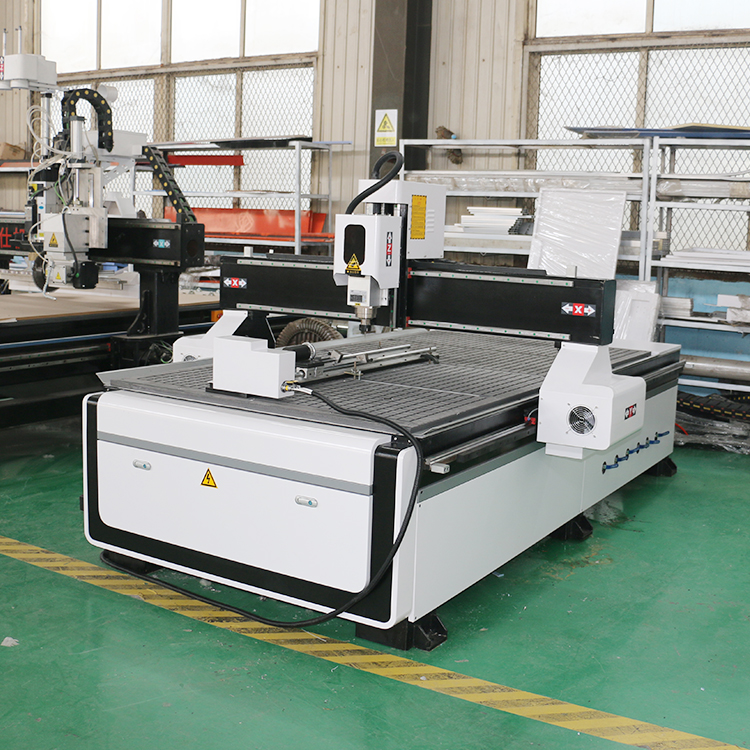

3. The 4th rotary axis is put at the side of the machine body.It does not cover the space of a flat table, easy to load and unload material.
4. Rigid and durable structure.
5. All the components have CE certification, safe and durable.
2. Breakpoint recovery function in case of power off or other accidents.
3. The 4th rotary axis is put at the side of the machine body.It does not cover the space of a flat table, easy to load and unload material.
4. Rigid and durable structure.
5. All the components have CE certification, safe and durable.
Application
Product Application
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.
1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate engraving, and milling process.
After sales service
Shipping and Packing
Packaging Details 1. Outside package: Standard export plywood case for CNC Router for advertising. 2. Inner package: Stretch film and plastic film for humidity. PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
FAQ
Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship? A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products? A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.

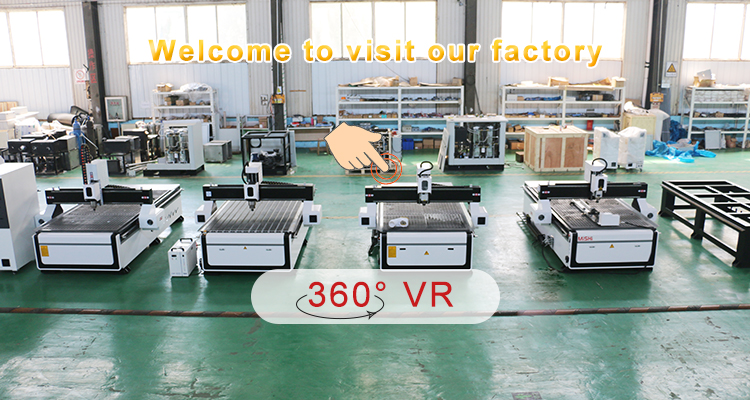

VR
