Fiber CNC Laser cutting machine Cutting carbon steel metal plate cutting breadth 1500*3000mm Metal laser machine
price

$7,850.00 - $8,850.00

MSL3015
1 set
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen/Dalian
Quantity
  • Application:LASER CUTTING, Galvanized Sheet Laser Cutting Engraving Machine
  • Applicable Material:Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
  • Condition:New
  • Laser Type:Fiber Laser
  • Cutting Area:1500*3000mm
  • Cutting Speed:35m/min
  • Graphic Format Supported:AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

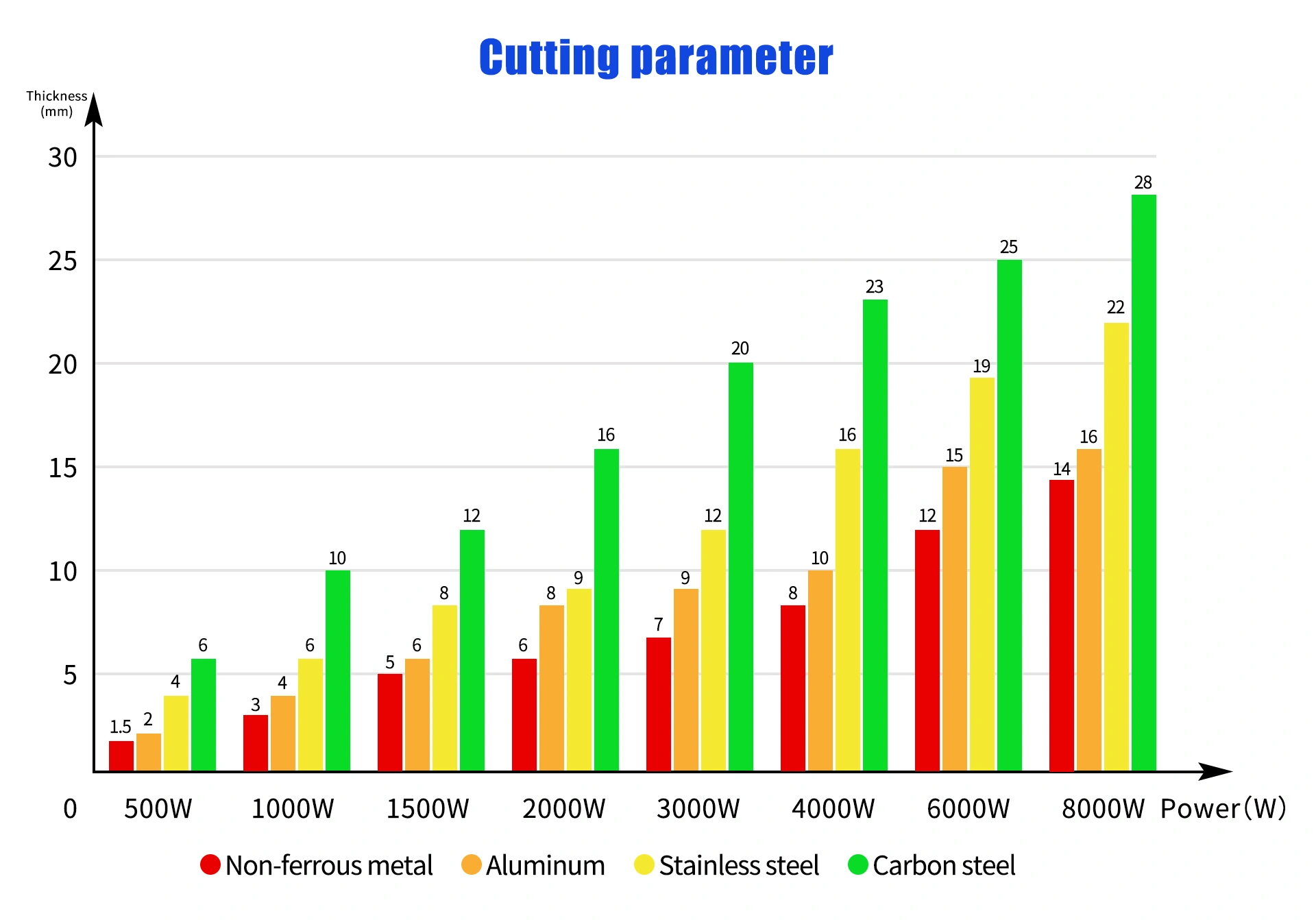

  • Cutting Thickness:0-20mm
  • CNC or Not:Yes
  • Cooling Mode:WATER COOLING
  • Control Software:Cypcut/Weihong
  • Place of Origin:Shandong, China
  • Brand Name:Mingshi
  • Laser Source Brand:RAYCUS
  • Laser Head Brand:Raytools
  • Servo Motor Brand:FUJI
  • Guiderail Brand:HIWIN
  • Control System Brand:Cypcut
  • Weight (KG):1000 KG
  • Key Selling Points:Multifunctional
  • Optical Lens Brand:II-VI
  • Warranty:3 years
  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, Driver, System, Spindle, laser head, Laser source, Water chiller
  • Mode of Operation:continuous wave
  • Configuration:3-axis
  • Products handled:Sheet Metal and Tube
  • Feature:Automated Loading, High Speed Industry Cutting Metal Machine
  • Certification:ce
  • Function:Cutting Metal Materials
  • Laser power:500W / 1000W / 2000W / 3000W
  • Laser source:MAX IPG RAYCUS
  • Working area:1500mmX3000mm
  • Control system:Cypcut System
  • Laser-type:Fiber Laser Machine
  • Positioning Accuracy:0.01mm
Technical Parameters
Model
F3015 Fiber Laser Cutting Machine
Laser Type
Fiber Laser
Laser Working Medium
Optical Fiber
Laser Wave Length
1060-1080nm
Output Rating
1000w
X-axis travel
1500mm
Y-axis travel
3000mm
Maximal Acceleration
1.5G
Plate Effective Cutting Range
1500*3000mm
Positioning Accuracy
0.03mm/m
Repeat The Positioning Accuracy
±0.02mm/m
Maximum Empty Speed
100m/min
Power Supply Rating Parameters
3 Phase Current 380V 50Hz
Equipment Electrical Power
11.25kw
1000W Laser Source
MAX/ Raycus(Option)
Laser Head
RAYTOOLS
Table Structure
Time Treatment Pipe Welding / Plate Welding Bed Body
XY Gear Rack
High-precision Grinding
Servo Motor
Japan Fuji
Reducer
Japan SHIMPO
Water Chiller
Hanli/S&A(Option)
Laser Cutter System
Cypcut Control System

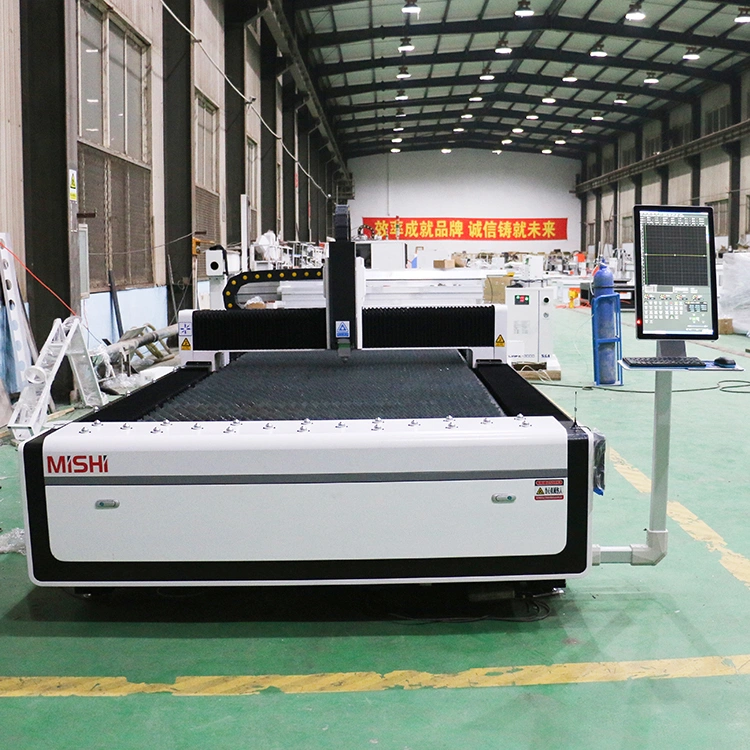

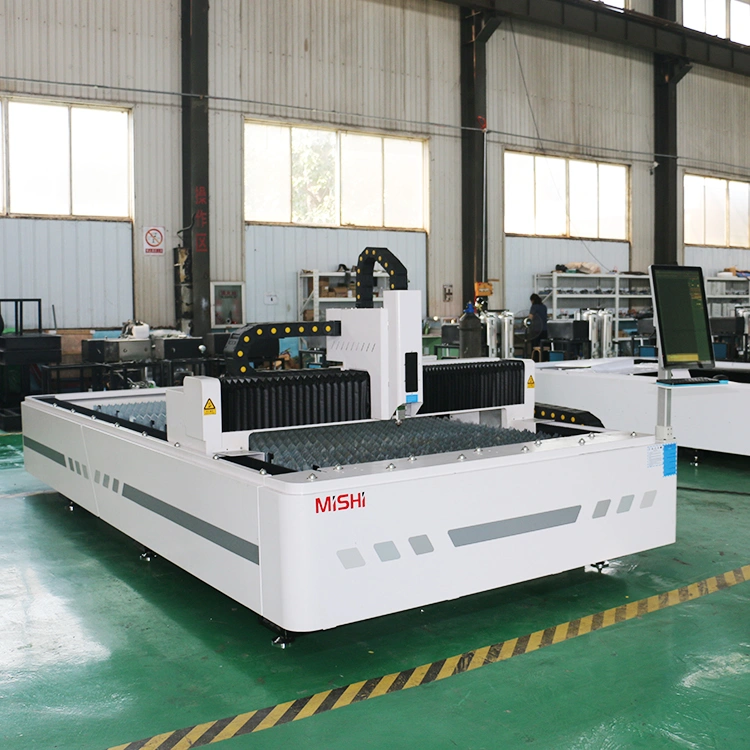

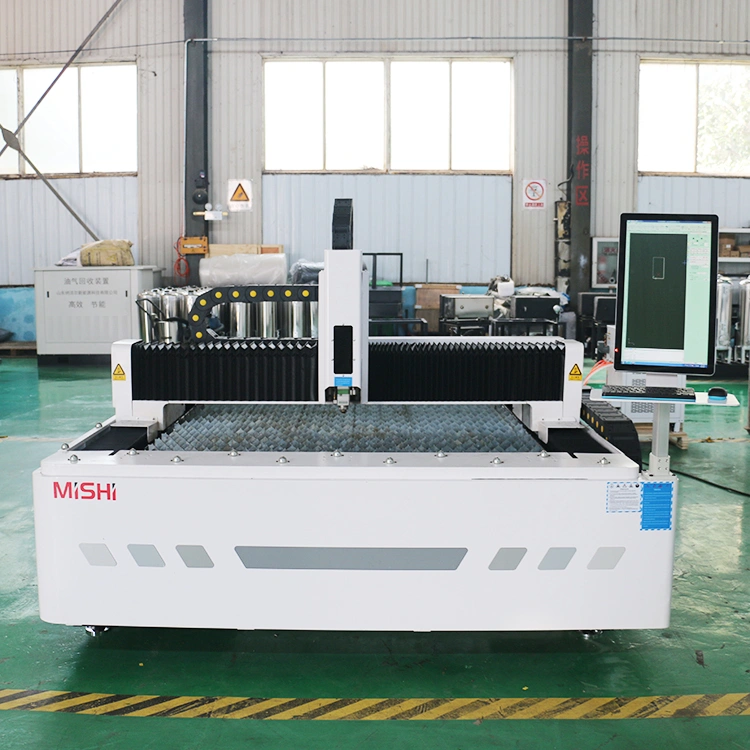

Detailed Images

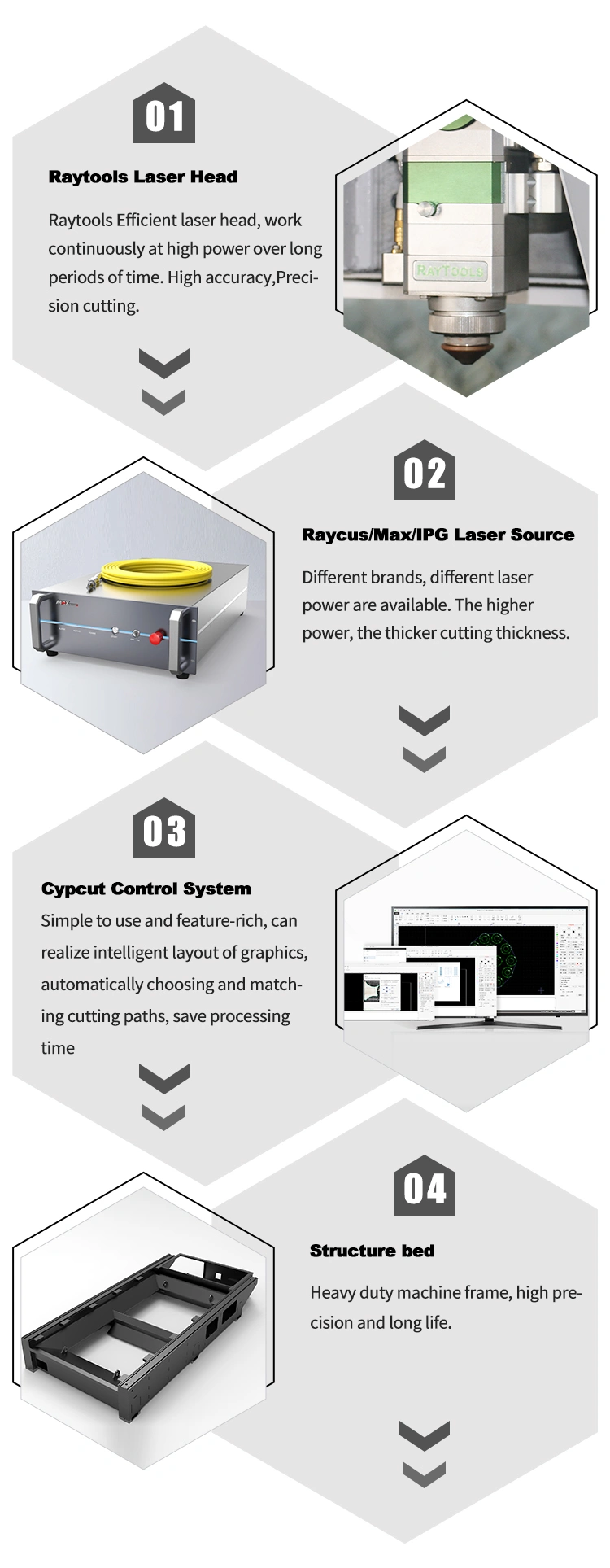

Product Description
1. Professional laser optical system and imported lenses, stable and reliable.
2. Efficient and stable programming and control system, easy to learn and humanized, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting paths, matching and saving processing time.
3. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped work pieces.
4. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.
5. Imported high-precision servo motors, guide rails, and German-made gear racks, while ensuring processing efficiency and processing accuracy, greatly improve the stability and reliability of the equipment operation.
Application
Application Industries
Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery , Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.
Applicable materials
Professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel pl-ates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.
After sales service
Company Introduction
Shipping and Packing
Packaging Details1. Outside package: Standard export plywood case for CNC Router for advertising.2. Inner package: Stretch film and plastic film for humidity.PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
FAQ
Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
