China Jinan mingshi fiber laser rotary machine cutting 3015 6020 1kw 2kw for steel iron aluminum price
price

$15,800.00 - $19,999.00

MST6020
1 set
Qingdao/Shanghai/Yiwu/Daian/Guangzhou/Tianjin/Shenzhen
Quantity
  • Application:LASER CUTTING
  • Applicable Material:Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
  • Condition:New
  • Laser Type:Fiber Laser
  • Cutting Area:6000mm*200mm
  • Cutting Speed:80m-150m/min
  • Graphic Format Supported:AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness:1-20mm
  • CNC or Not:Yes
  • Cooling Mode:WATER COOLING
  • Control Software:Weihong
  • Place of Origin:Shandong, China
  • Brand Name:Mingshi
  • Laser Source Brand:Coherent
  • Laser Head Brand:Raytools
  • Servo Motor Brand:FUJI
  • Guiderail Brand:HIWIN
  • Control System Brand:WEIHONG
  • Weight (KG):1200 KG
  • Key Selling Points:High-accuracy
  • Optical Lens Brand:II-VI
  • Warranty:3 years
  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, System, Laser head, Driver
  • Mode of Operation:continuous wave
  • Configuration:3-axis
  • Products handled:Tube
  • Feature:3D
  • Working Voltage:380V ±10 % 50/60Hz
  • Auxiliary Gas:oxygen,nitrogen,air
  • Working Table:Sawtooth
  • Position Accuracy:±0.02mm/m
  • Cooling System:Hanli water chiller
  • Function:Laser Cutting Engraving Marking
  • Laser source:MAX IPG RAYCUS
  • Color:Customer Requirement
  • Laser head:Raytools Cutting Head
  • Software:Cypcut Control Software
Technical Parameters
Model
T6020 Fiber laser cutting machine
Max Holding diameter
230mm
Laser Power
1000W( Optional Power :1500W, 2000W, 3000W,4000W )
Laser Generator
MAX/Raycus (Option)
Laser Wave Length
1080(±10)nm
Working Table
Sawtooth table
Maximum Idle Running Speed
80m/min
Maximum acceleration
1.0G
Position Accuracy
±0.02mm/m
Repeat Positional Accuracy
± 0.01mm
Cutting Thickness
≤8mm aluminum;
≤5mm Stainless steel
Control System
Weihong Controller TU3000
Position Type
Red dot
Power Consumption
≤15KW
Working Voltage
380V ±10 % 50/60Hz
Auxiliary Gas
Oxygen, Nitrogen, Air
Working life of fiber module
More than 100000 hours
Fiber laser cutting head
Raytools BT220-2D
Cooling System
Hanli water chiller
Work Environment
0-45°C, Moisture 45-85%
Delivery time
30-40 work days (According to actual season)
Laser Cutter System
Cypcut Control System

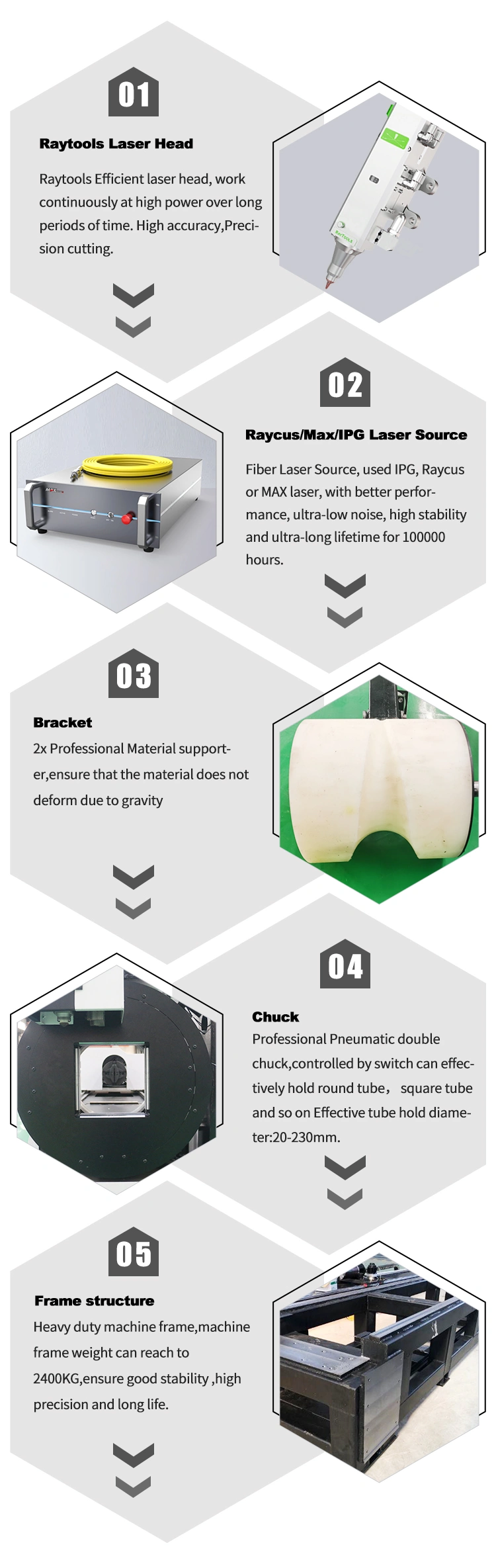

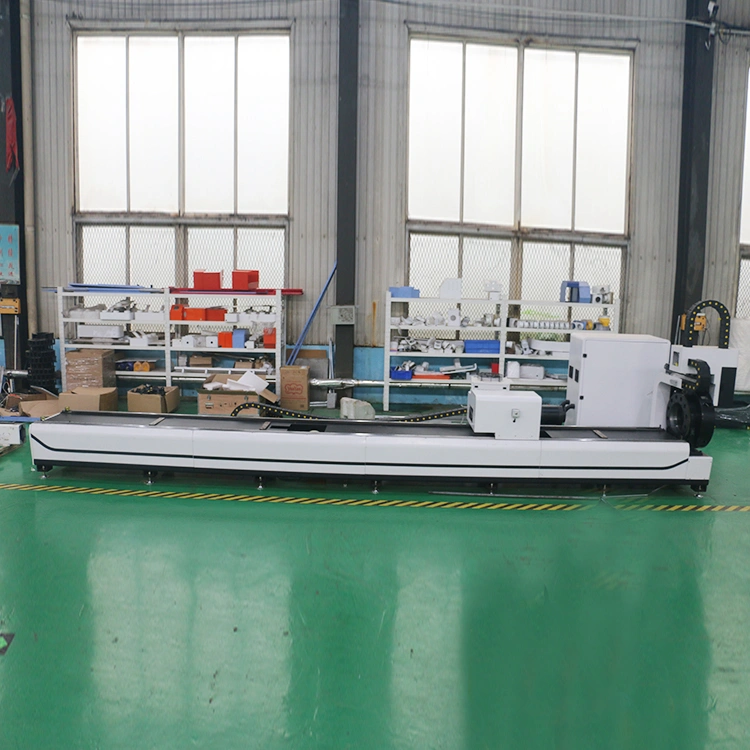

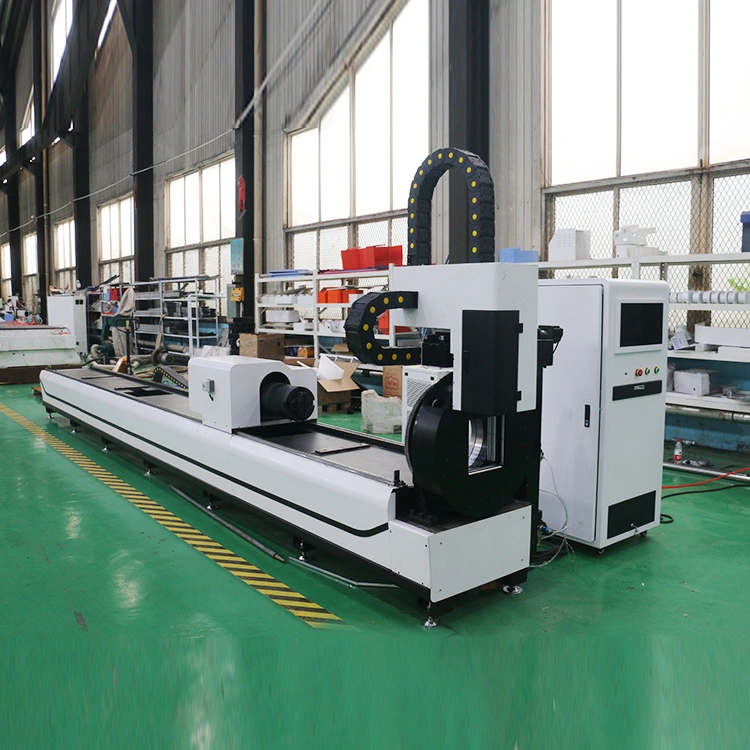

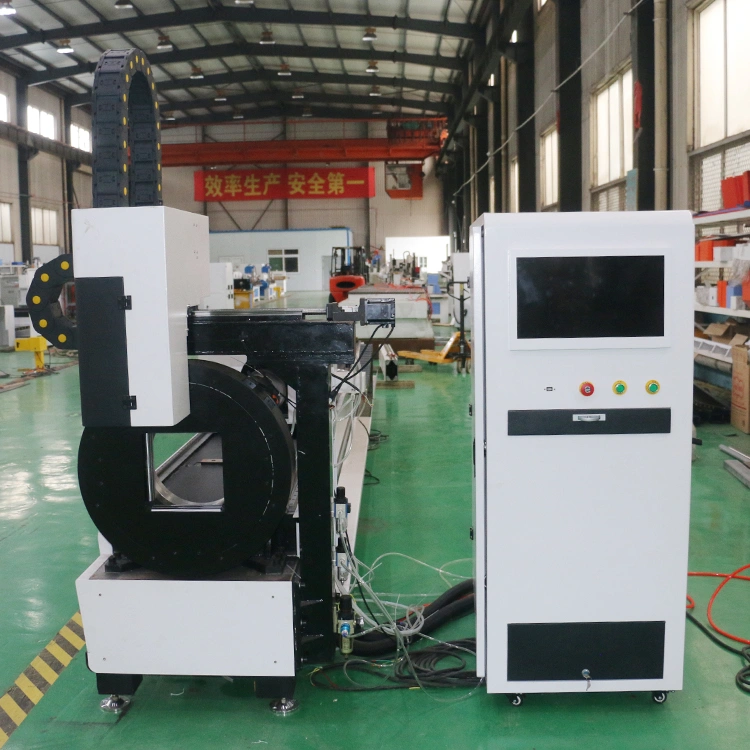

Detailed Images
Product Description
1. Professional laser optical system and imported lenses, stable and reliable.
2. Efficient and stable programming and control system, easy to learn and humanized, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting paths, matching and saving processing time.
3. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped work pieces.
4. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.
5. Imported high-precision servo motors, guide rails, and German-made gear racks, while ensuring processing efficiency and processing accuracy, greatly improve the stability and reliability of the equipment operation.
Application
Application industries
Mingshi pipe laser cutting machine can be used many area, like Mechanical equipment, hardware and li-ghting, door and window manufacturing, kitchen electrical, sheet metal chassis, advertising signs, medic-al equipment materials, display equipment and various metal products, sheet metal cutting, etc.
Applicable materials
Professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel pl-ates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.
After sales service
Company Introduction
Shipping and Packing
Packaging Details1. Outside package: Standard export plywood case for CNC Router for advertising.2. Inner package: Stretch film and plastic film for humidity.PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
FAQ
Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
VR
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be
within1 minute during working time, And within 6 hours during off duty time.
you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion. We can also supply products related to our machines
