Best-Selling and Affordable wood bead machine 3d cnc wood carving machine wooden furniture making machinery
price

$5,200.00 - $5,500.00

1 set
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Quantity
  • Condition:New
  • Range of Spindle Speed(r.p.m):1 - 18000 rpm
  • Positioning Accuracy (mm):0.01 mm
  • No. of Spindles:Four
  • Working Table Size(mm):1300×2500
  • Machine Type:CNC Router
  • Travel (X Axis)(mm):1300 mm
  • Travel (Y Axis)(mm):2500 mm
  • Repeatability (X/Y/Z) (mm):0.01 mm
  • Spindle Motor Power(kW):6
  • CNC or Not:CNC
  • Place of Origin:Shandong, China
  • Brand Name:MINGSHI
  • Voltage:380V 50HZ
  • Dimension(L*W*H):3700*2200*1650mm
  • Power (kW):7.5
  • Weight (KG):1200
  • Control System Brand:NC Studio, Syntec, Mach3, DSP, RichAuto
  • Warranty:3 years
  • Key Selling Points:High Rigidity
  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, Driver, System, Spindle
  • Type:CNC Engraving Machine
  • Machine name:Engraving Machine
  • Function:Cutting
  • Applicable industry:Furniture
  • Product name:Router Cnc
  • Material:wood
  • After-sales Service Provided:Online support
  • Local Service Location:None
  • After Warranty Service:Video technical support, Online support, Spare parts
  • Showroom Location:None
  • Certification:CE
  • Marketing Type:New Product 2021

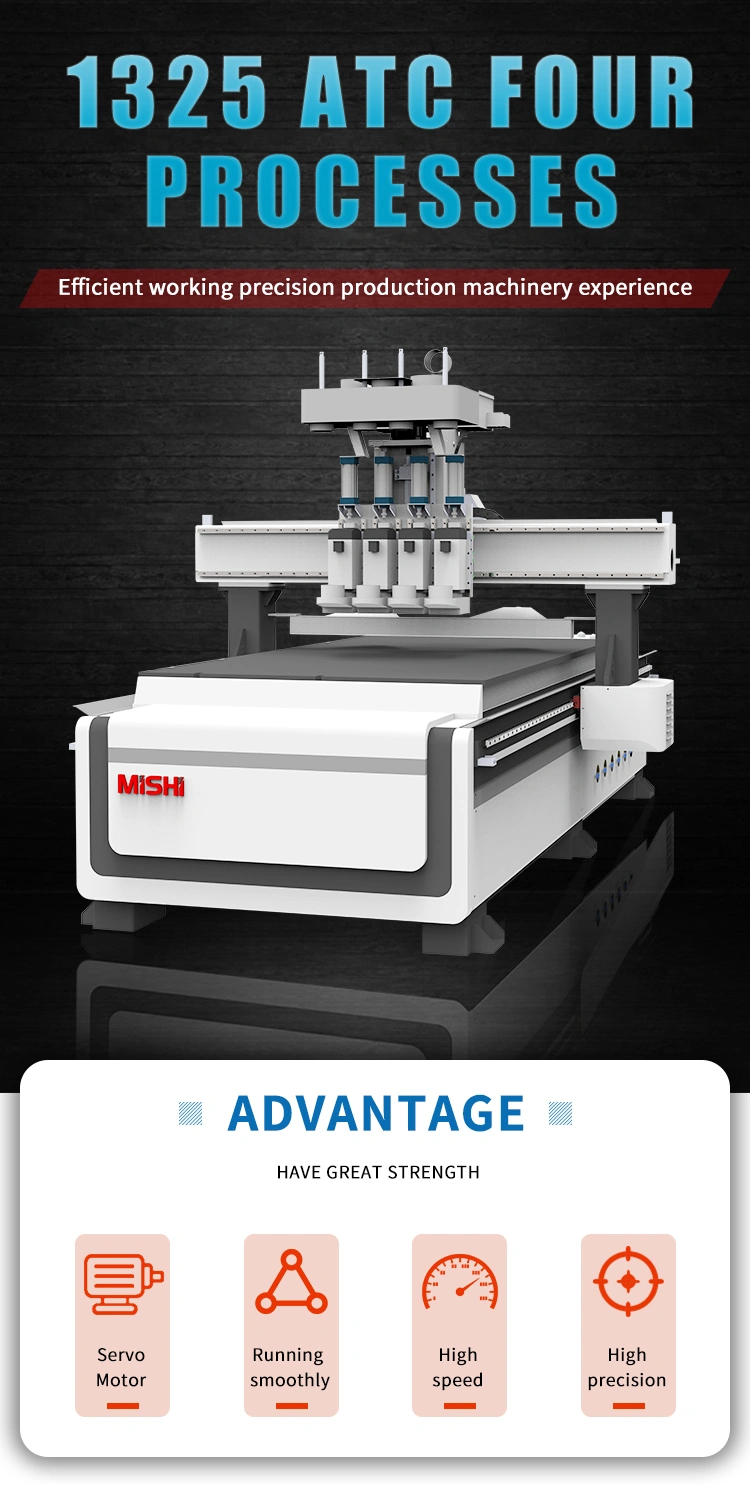

Product Show
Technical Parameters
1325 Four Processes
Machine Type
MSW1325
Operating Voltage
AC380V 50HZ 3HP Three-phase Four-wire
Work Plan
X1250*Y2480*Z200mm
Maximum Empty Travel Speed
XY50000mm/min Z20000mm/min
Working Speed
15000-30000mm/min
Table Structure Size
Vacuum Adsorption Table 1260*2480 6 Partitions 24 Holes
Bed Structure
Heavy-duty Double-layer Unloading Trapezoidal Bed
Transmission
Rail 25 Square Rail
Rack High Precision 1.5M Helical Gear
Reducer Japan's New Treasure
Screw Taiwan TBI
Frequency Converter
Shenzhen TETRAN 7.5KW
Spindle Power
JST 6KW*4
Spindle Speed
0-18000rmp
Motor
Shenzhen LEADSHINE 1000w Servo
Run Command
G Code
Operating System
LNC MW2200 System
Total Weight
1.2T
Plate Fixing
7.5kw Water Circulation Vacuum Pump
Dust Removal
5.5kw High Power Vacuum Cleaner

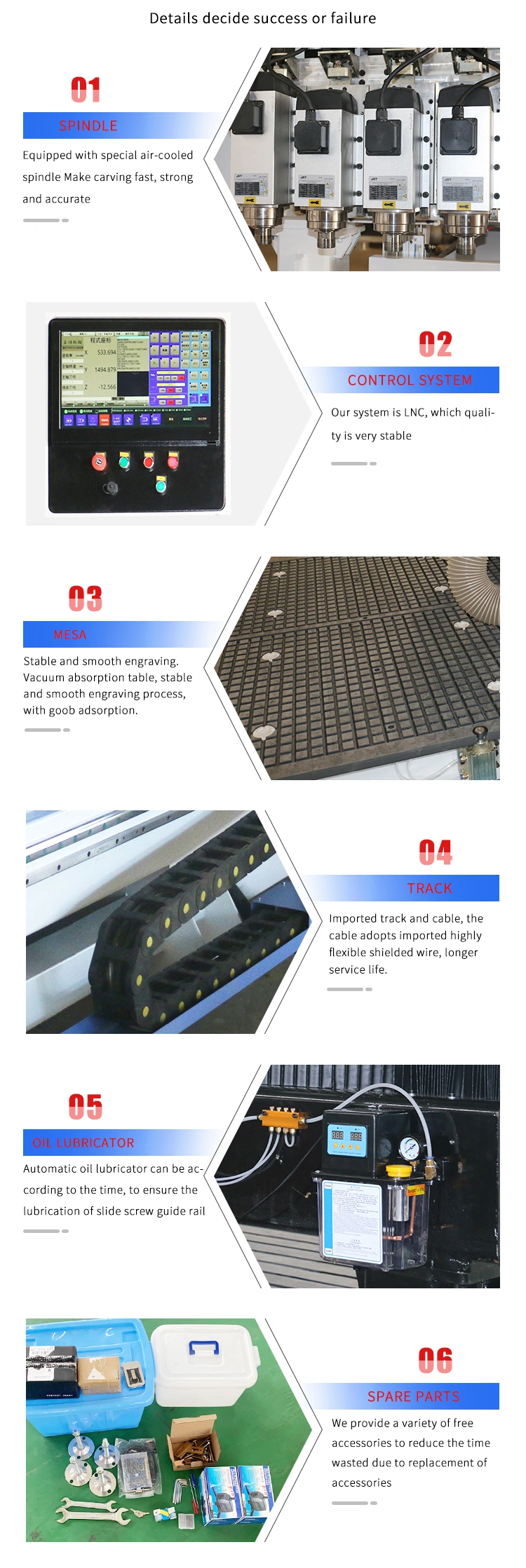

Detailed Images

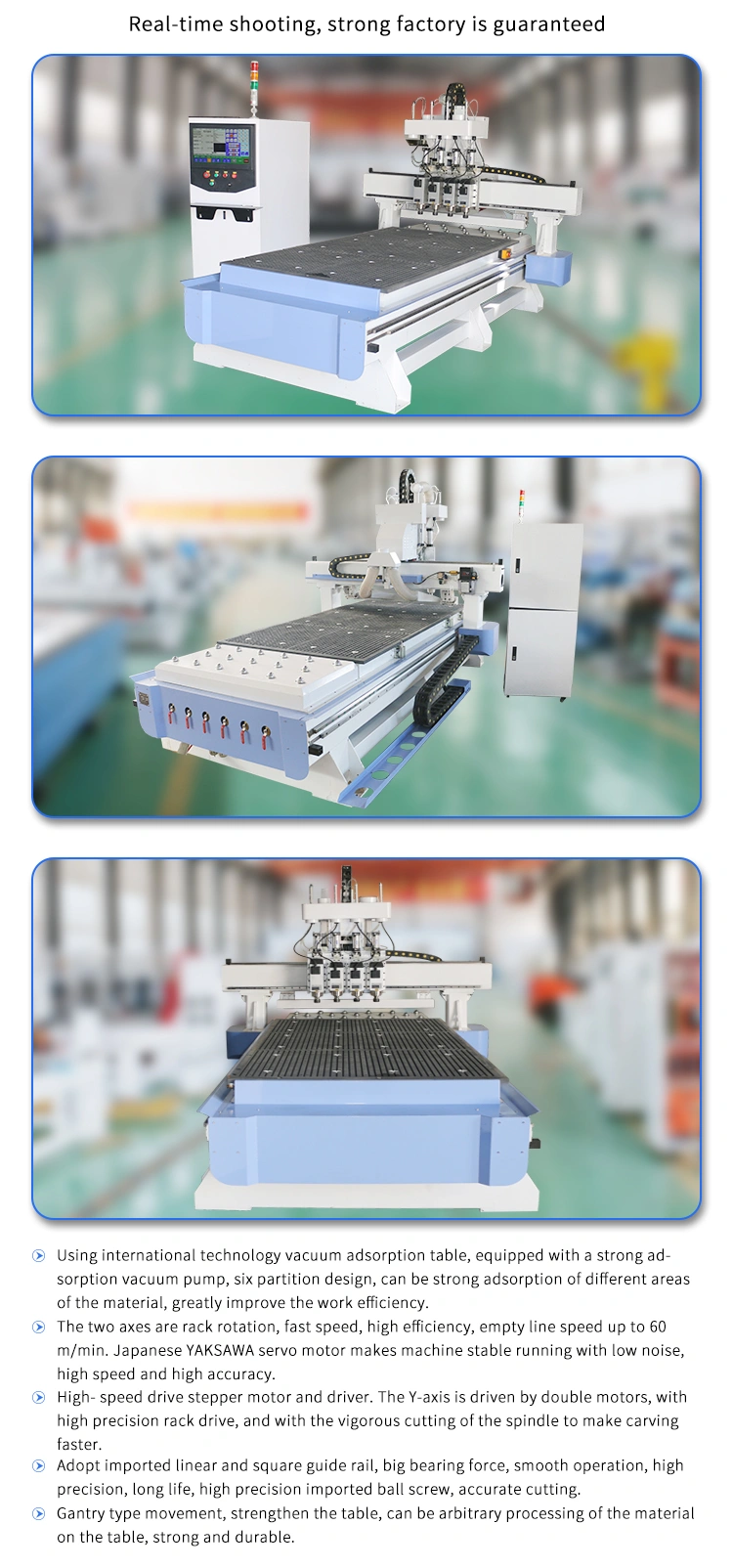

Product Photograph
Application
Company Introduction
Shipping and Packaging
Q: Where is your company?
A: Our company is located in Jinan city. “CNC center” in China.It is a professional automation machinery equipment enterprise integrating the research and development, production, sales and maintenance services of CNC router.

Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with English version to you. If you still can not operate, we will provide video guidance online.

Q: What about after-sales service? How long is the warranty period?
A: We offer 24 hours online video call to solve your problems. We have a standby team ready to assist you at any given time. Machine maintenance requirement will be provided to you upon purchase. On all machinery we offer 3 years warranty and 1 year warranty for core components.

Q: What about your payment?
A: We accept multiple payment, you could talk to the trade sales for details.T/T, L/C , Paypal, Western Union etc.

Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air or by train. Our trade terms is mostly centred on FOB, but we offer EXW, CIF,depending on which is more convenient for you.
