Low Price 1.5kw Mini 3D 4 Axis 3 Axis 6090 CNC Router Wood Engraving Machine For 3D In Aluminum
MSM4040
Minimum order quantity:
1 set
Country of Origin:
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen/Dalian
Quantity
$1299.00 - $1999.00
/ set
- Condition:New
- Range of Spindle Speed(r.p.m):1 - 24000 rpm
- Positioning Accuracy (mm):0.02 mm
- Number of Axes:3
- No. of Spindles:Single
- Working Table Size(mm):600×900
- Machine Type:CNC Router
- Travel (X Axis)(mm):600 mm
- Travel (Y Axis)(mm):900 mm
- Repeatability (X/Y/Z) (mm):0.02 mm
- Spindle Motor Power(kW):2.2kw
- CNC or Not:CNC
- Place of Origin:Shandong, China
- Brand Name:MINGSHI
- Voltage:AC220V/380V
- Dimension(L*W*H):1500*1200*2100mm
- Weight (KG):500
- Control System Brand:NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
- Warranty:3 years
- Key Selling Points:High Productivity
- Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor, Driver, System, Spindle
- Type:CNC Engraving Machine
- Machine name:Engraving Machine
- Function:Cutting
- Control system:NcStudio Control System
- Transmission:TBI Ball Screw
- Spindle:2.2kw Water Cooling Spindle
- After-sales Service Provided:Video Technical Support
- Motor and driver:Leashine Driver (option Delta
- Application:Aluminium Cutting
- Software:TYPE3/ARTCAM
Technical Parameters
Machine model | 4040 metal CNC router | 6060 metal CNC router | 6090 metal CNC router | ||
Working area | 400*400mm | 600*600mm | 600*900mm | ||
Machine structure | Cast iron structure, table move on Y axis | ||||
Feeding height | 150/300mm | ||||
Spindle | 2.2kW water cooling spindle | ||||
Spindle speed | 24000rpm | ||||
Control system | Weihong / DSP | ||||
Drive and motor | Leadshine stepper / servo motor | ||||
X Y Z axis guide rail | Taiwan square linear rails | ||||
Transmission | X Y Z axis TBI ball screw driver | ||||
Coolant system | Including water sink and pump to cool down tool bits and working materials | ||||
Working voltage | AC220V/380V±10% / 50~60Hz | ||||
Working precision | 0.05mm | ||||
Repeatability precision | 0.01mm | ||||
Command code | G code | ||||
Compatible software | Type3/Artcam//Mastercam/Ucancam etc | ||||
Machine tool work light | LED machine light | ||||

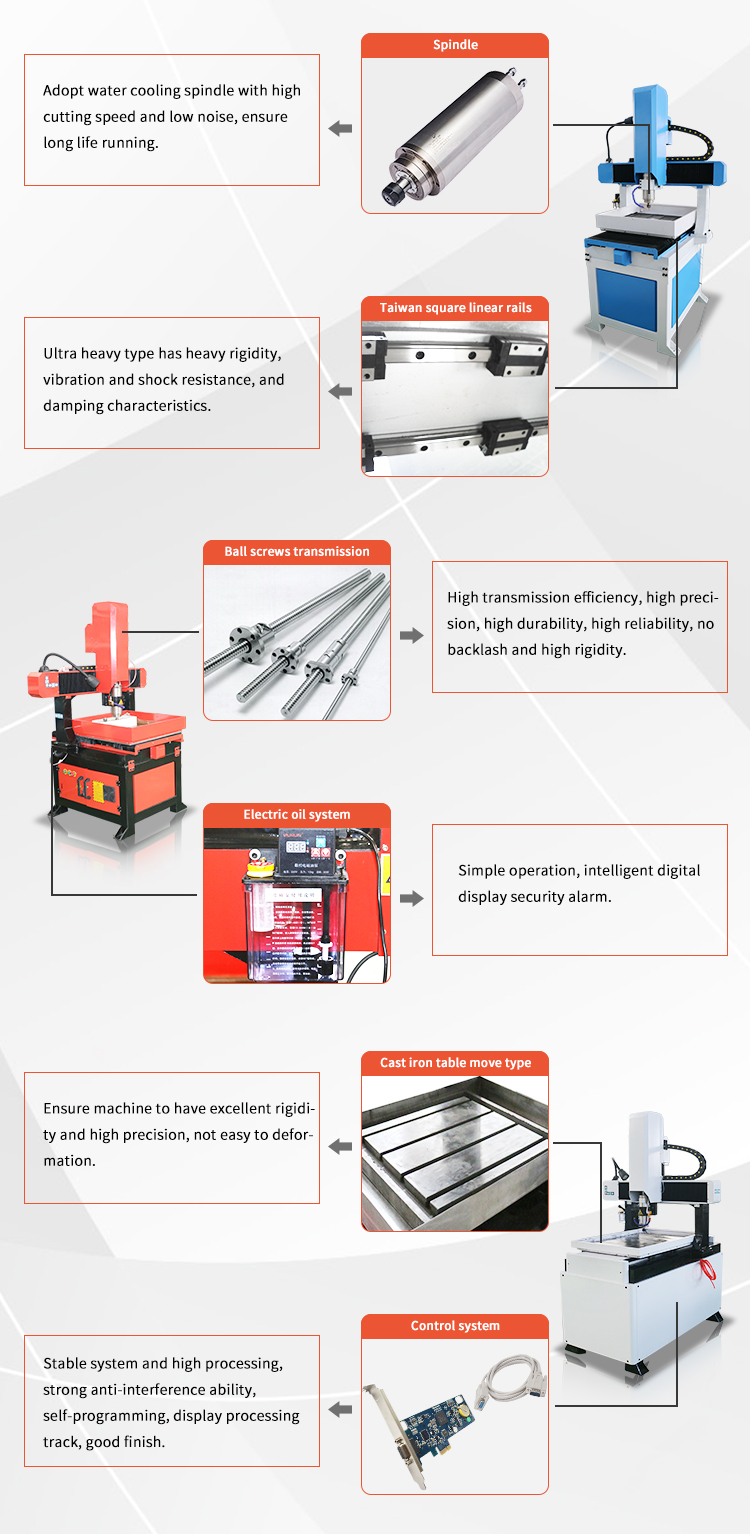

Details Introduction
Application
The Metal CNC engraving and milling machine is used for Iron, Copper, Aluminum, Stainless steel, mold steel, MDF sheets, PMMA, PVC sheets, ABS sheet, KT sheet, Timber, Gemstone, Marble, Aluminum, and plastic composite panel, Iron, Copper, Aluminum, Plastics, etc.
1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, a-luminum, and plastics.
2. It is widely used in automotive, injection mold, ironware mold, and engrave mold industries.
3. It is specially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, grap-hics, and words of three-dimensional and outside surface's sleeking of large size molds.
1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, a-luminum, and plastics.
2. It is widely used in automotive, injection mold, ironware mold, and engrave mold industries.
3. It is specially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, grap-hics, and words of three-dimensional and outside surface's sleeking of large size molds.
After sales service
We have professional pre-sales and after sales service Mingshi CNC team
1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising
2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
FAQ
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.

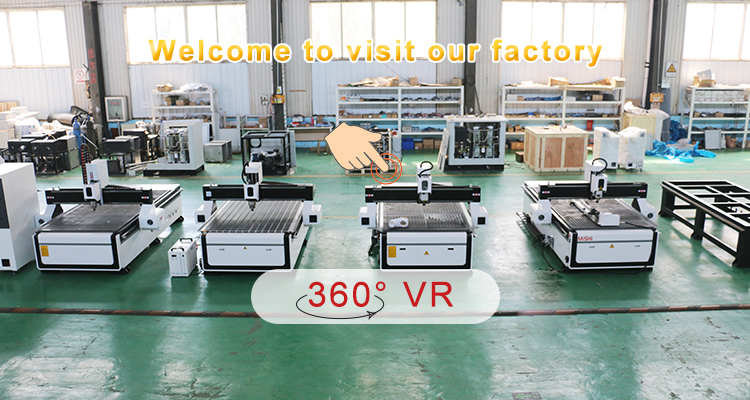

VR
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time.
We specialize in CNC routers and laser machines for 12 years
The response will be within 1 minute during working time, And within 6 hours during off duty time.
You haven't found the machine you need, don't hesitate to contact us too. We will do our best to give you the best suggestion. We can also supply products
related to our machines.
