Mini 6090 Multi Product Function CNC Router Engraving Machine Equipment

MSM6090

minimum order

1 set

Country of Origin

Qingdao/Tianjing/Guangzhou/Shenzhen/Yiwu/Shanghai

Quantity

Contact Now

add to cart

Products Description

Mini 6090 Multi Product Function CNC Router Engraving Machine Equipment

Machine model	MS6090
Working voltage	AC380V, 50Hz, 3HP, three items and four wires
Working stroke	600*900*150mm/600*900*300mm
Feed height	150mm/300mm
Engraving speed	0-8000mm/min
Engraving accuracy	0.02-0.05mm
Repeat positioning accuracy	±0.01mm
Transformer	800W70V
Switching power supply	50W24V
Operating voltage	220V/50HZ
Frequency converter	1.5KW / 2.2KW (Fuling)
Spindle power	1.5KW / 2.2KW (Jester water cooling)
Spindle speed	0-24000RMP
Spindle collet	1.5 spindle - ER11/2.2 Spindle - ER20
Drive	860H (servo optional)
Control system	Weihong control system
Engraving instruction	G code
Weight	700KG
Body size (L/W/H)	1600*1000*1900mm

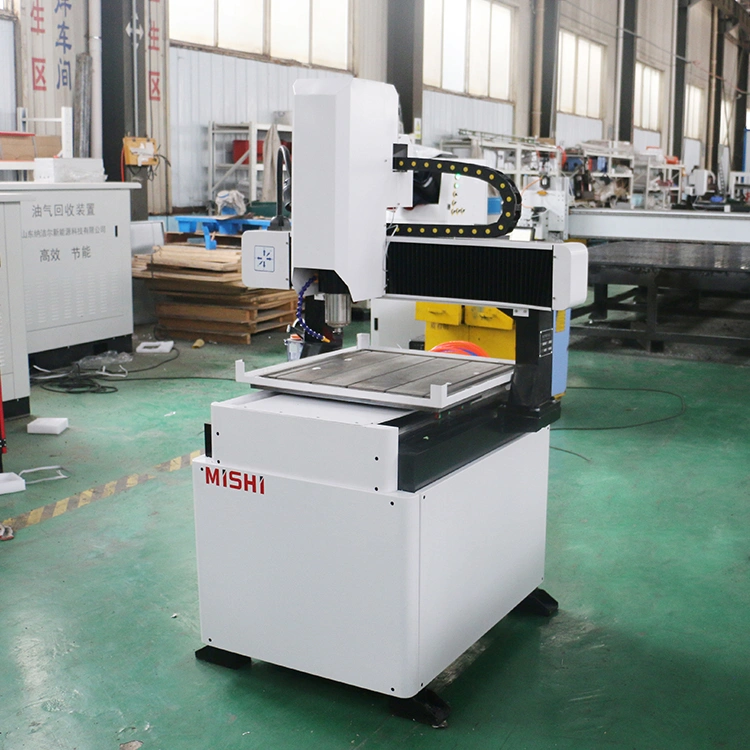

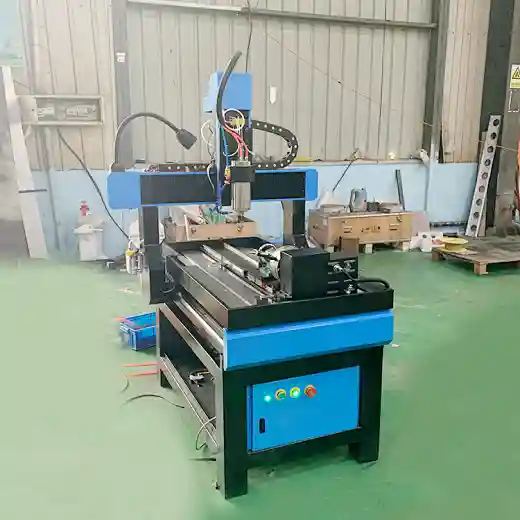

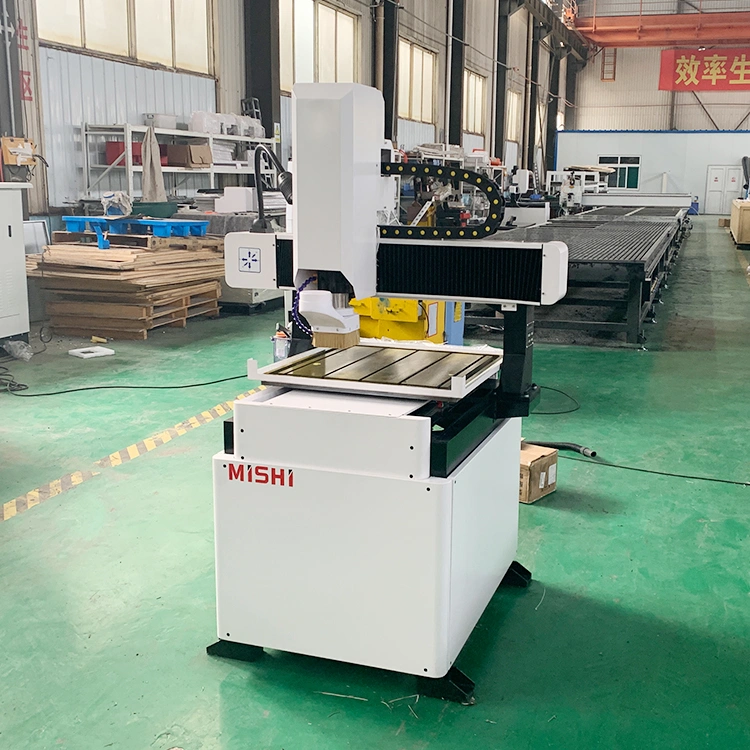

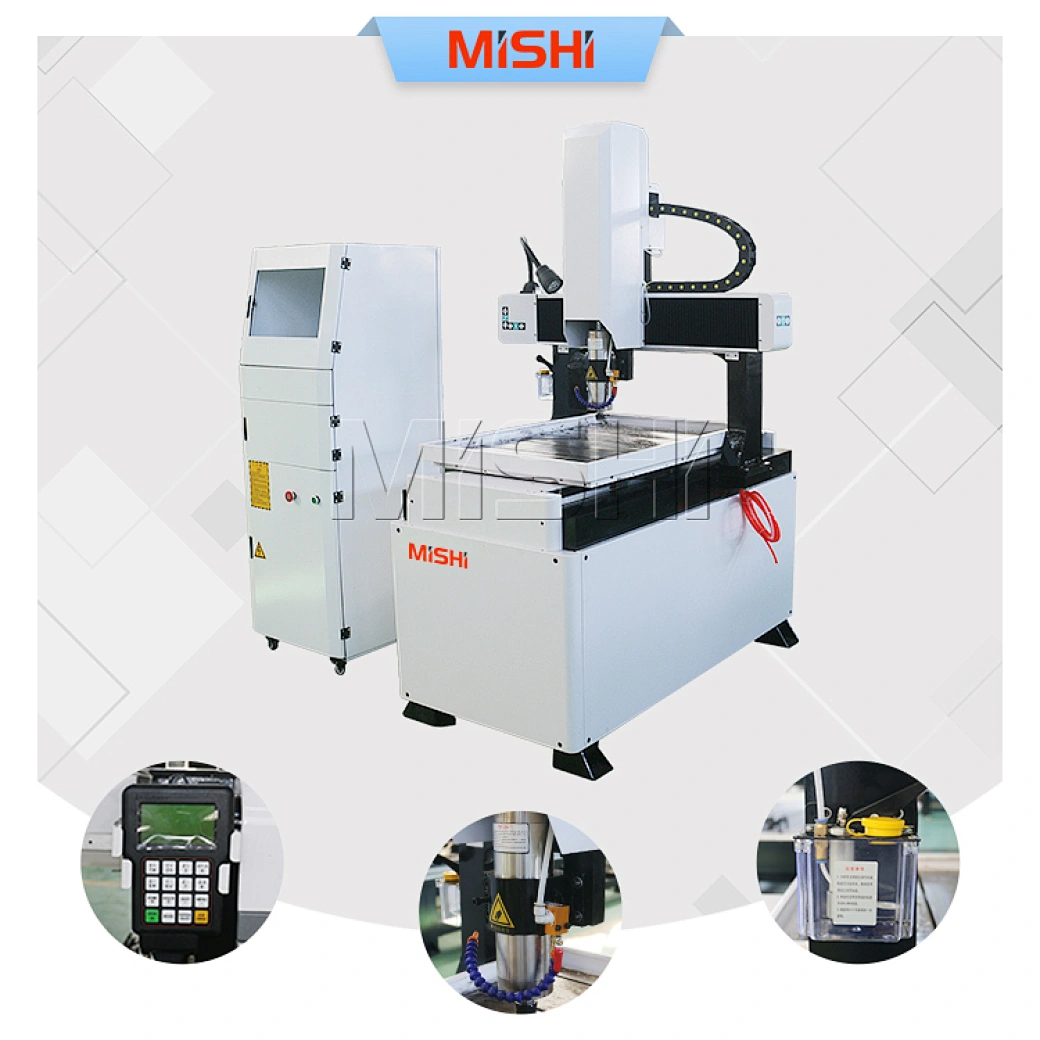

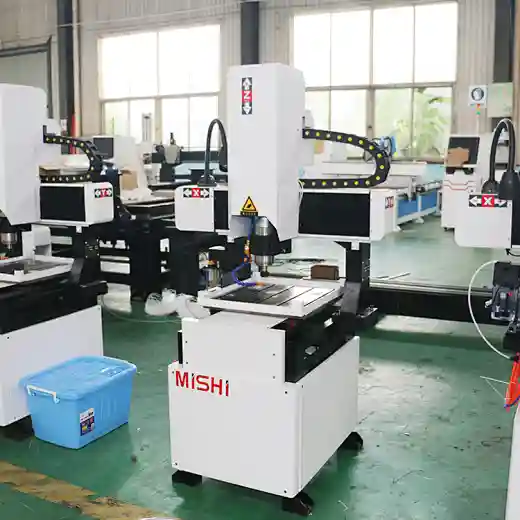

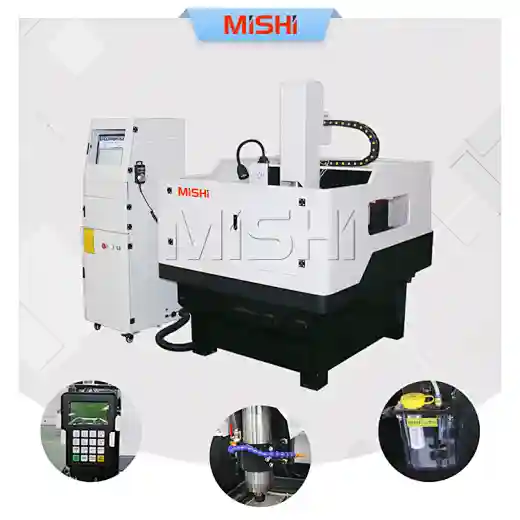

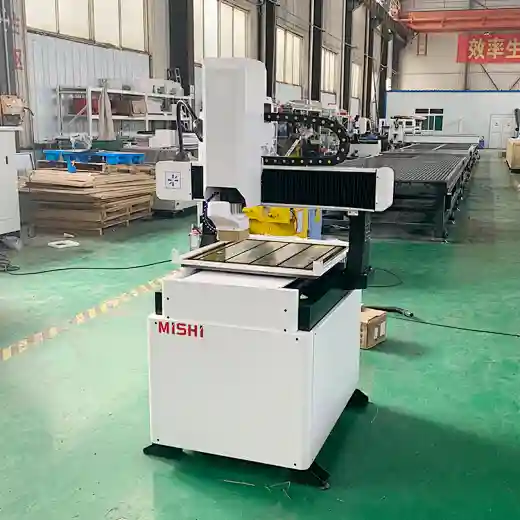

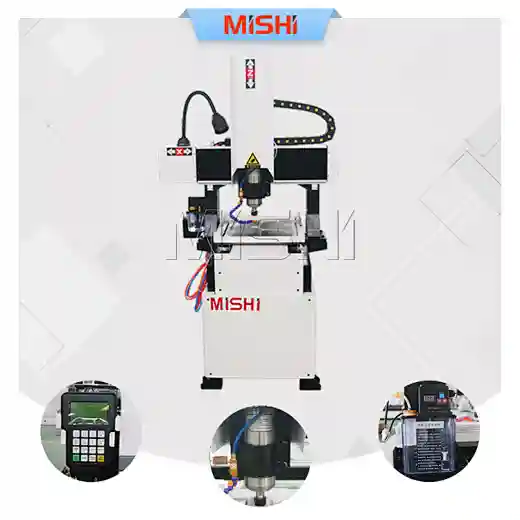

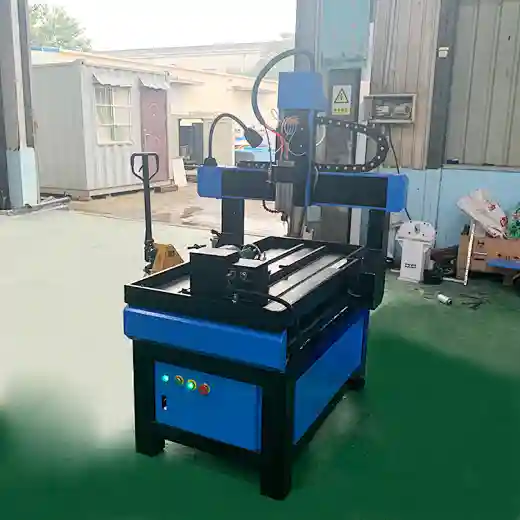

Product Show







After sales Services

Shipping and Packing

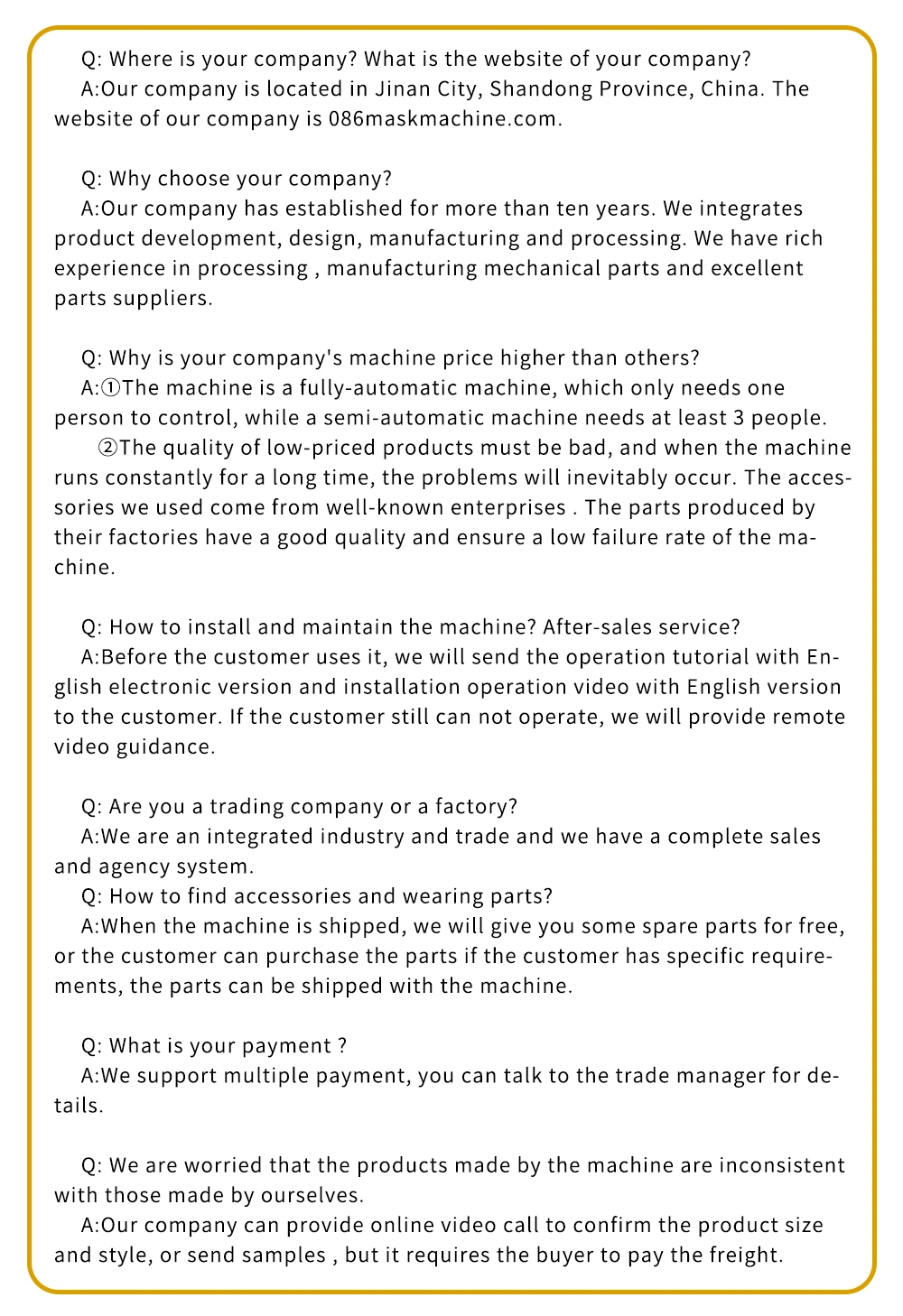

FAQ

Application

1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.

2.Our wood CNC milling machine can be widely applied to automotive, injection mold, ironware mold, and engrave mold industries.
3. Especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics, and words of three-dimensional and outside surfaces sleeking of large size.
